LSlider

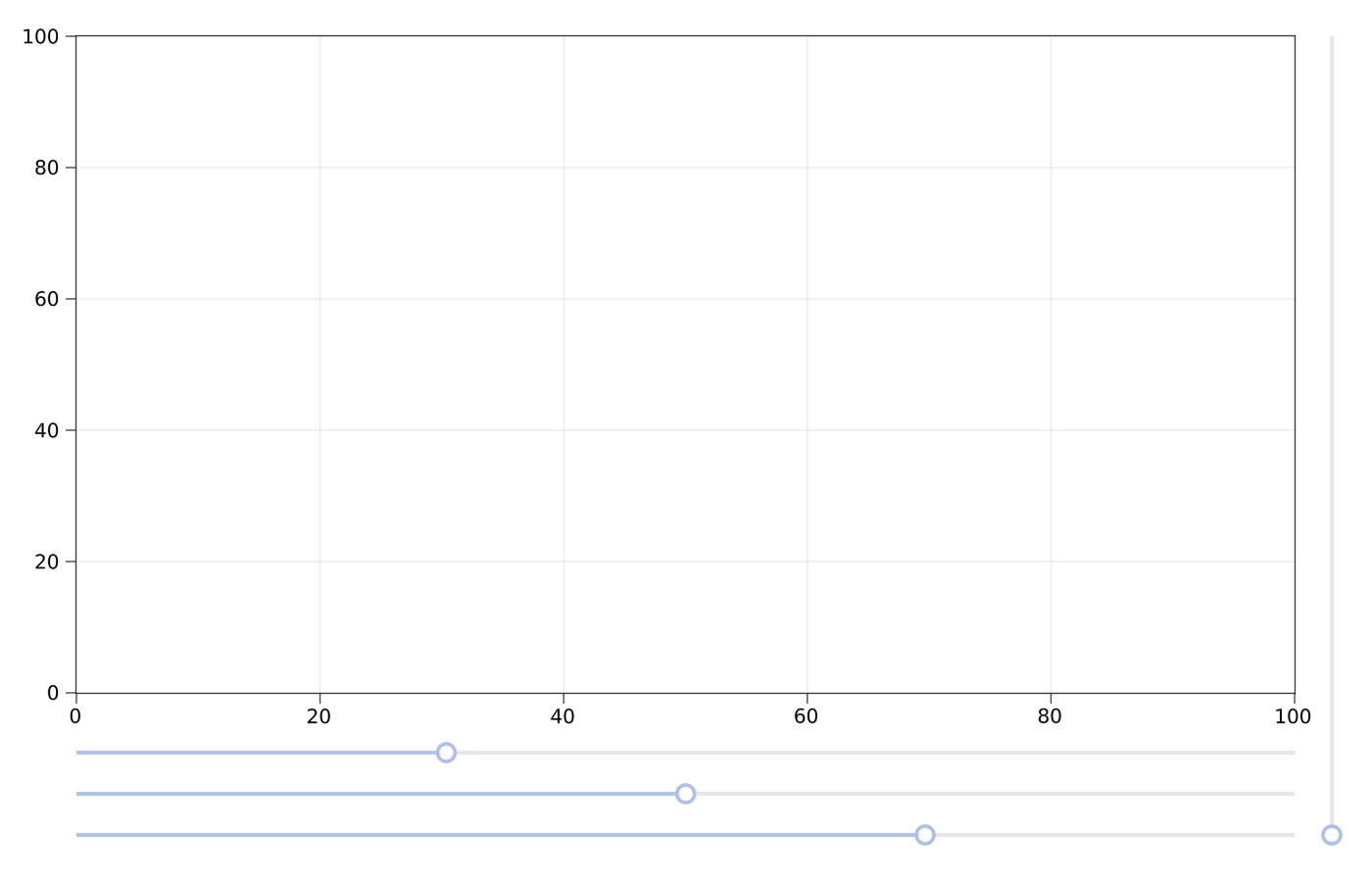

A simple slider without a label. You can create a label using an LText object, for example. You need to specify a range that constrains the slider's possible values. You can then lift the value observable to make interactive plots.

using Makie
using MakieLayout

scene, layout = layoutscene(resolution = (1400, 900))

ax = layout[1, 1] = LAxis(scene)
sl1 = layout[2, 1] = LSlider(scene, range = 0:0.01:10, startvalue = 3)
sl2 = layout[3, 1] = LSlider(scene, range = 0:0.01:10, startvalue = 5)
sl3 = layout[4, 1] = LSlider(scene, range = 0:0.01:10, startvalue = 7)

sl4 = layout[:, 2] = LSlider(scene, range = 0:0.01:10, horizontal = false,
    width = Auto(true), height = nothing)

LText

This is just normal text, except it's also layoutable. A text's size is known, so rows and columns in a GridLayout can shrink to the appropriate width or height.

using Makie
using MakieLayout

scene, layout = layoutscene(resolution = (1400, 900))

axs = layout[1:2, 1:3] = [LAxis(scene) for _ in 1:6]

supertitle = layout[0, :] = LText(scene, "Six plots", textsize = 30)

sideinfo = layout[2:3, 0] = LText(scene, "This text goes vertically", rotation = pi/2)

LButton

using Makie
using MakieLayout

scene, layout = layoutscene(resolution = (1400, 900))

layout[1, 1] = LAxis(scene)
layout[2, 1] = buttongrid = GridLayout(width = Auto(false))

buttongrid[1, 1:5] = [LButton(scene, label = "Button $i") for i in 1:5]

scene

LRect

A simple rectangle poly that is layoutable. This can be useful to make boxes for facet plots or when a rectangular placeholder is needed.

using Makie
using MakieLayout
using ColorSchemes

scene, layout = layoutscene(resolution = (1400, 900))

rects = layout[1:4, 1:6] = [LRect(scene, color = c) for c in get.(Ref(ColorSchemes.rainbow), (0:23) ./ 23)]

LScene

If you need a normal Makie scene in a layout, for example for 3D plots, you have to use LScene right now. It's just a wrapper around the normal Scene that makes it layoutable. The underlying Scene is accessible via the scene field. You can plot into the LScene directly, though.

Currently you should pass a couple of attributes explicitly to make sure they are not inherited from the main scene (which has a pixel camera, e.g.).

using Makie
using MakieLayout

scene, layout = layoutscene(resolution = (1400, 900))

lscenes = layout[1:2, 1:3] = [LScene(scene, camera = cam3d!, raw = false) for _ in 1:6]

[scatter!(lscenes[i], rand(100, 3), color = c)
    for (i, c) in enumerate([:red, :blue, :green, :orange, :black, :gray])]

LToggle

A toggle with an attribute active that can either be true or false, to enable or disable properties of an interactive plot.

using Makie
using MakieLayout

scene, layout = layoutscene(resolution = (1400, 900))

ax = layout[1, 1] = LAxis(scene)

toggles = [LToggle(scene, active = ac) for ac in [true, false]]
labels = [LText(scene, lift(x -> x ? "active" : "inactive", t.active))
    for t in toggles]

layout[1, 2] = grid!(hcat(toggles, labels), height = Auto(false))

LMenu

A dropdown menu with options, where each element's label is determined with optionlabel(element) and the value with optionvalue(element). The attribute selection is set to the option value of an element when it is selected.

using Makie
using MakieLayout

scene, layout = layoutscene(resolution = (1400, 900))

menu = LMenu(scene, options = ["viridis", "heat", "blues"])

funcs = [sqrt, x->x^2, sin, cos]

menu2 = LMenu(scene, options = zip(["Square Root", "Square", "Sine", "Cosine"], funcs))

layout[1, 1] = vbox!(
    LText(scene, "Colormap", width = nothing),
    menu,
    LText(scene, "Function", width = nothing),
    menu2;
    height = Auto(false), width = 200)

ax = layout[1, 2] = LAxis(scene)

func = Node{Any}(funcs[1])

ys = @lift($func.(0:0.3:10))
scat = scatter!(ax, ys, markersize = 20px, color = ys)

cb = layout[1, 3] = LColorbar(scene, scat, width = 30)

on(menu.selection) do s
    scat.colormap = s
end

on(menu2.selection) do s
    func[] = s
    autolimits!(ax)
end

menu2.is_open = true

Deleting Layoutables

To remove axes, colorbars and other layoutables from their layout and the scene, use delete!(layoutable).
