Creating a legend

using MakieLayout
using Makie
using AbstractPlotting: px

scene, layout = layoutscene(resolution = (1400, 900))

ax = layout[1, 1] = LAxis(scene)

xs = 0:0.5:10
ys = sin.(xs)
lin = lines!(ax, xs, ys, color = :blue)
sca = scatter!(ax, xs, ys, color = :red, markersize = 15px)

leg = LLegend(scene, [lin, sca], ["a line", "some dots"])
layout[1, 2] = leg

# you can add more elements using push
push!(leg, "both together", lin, sca)

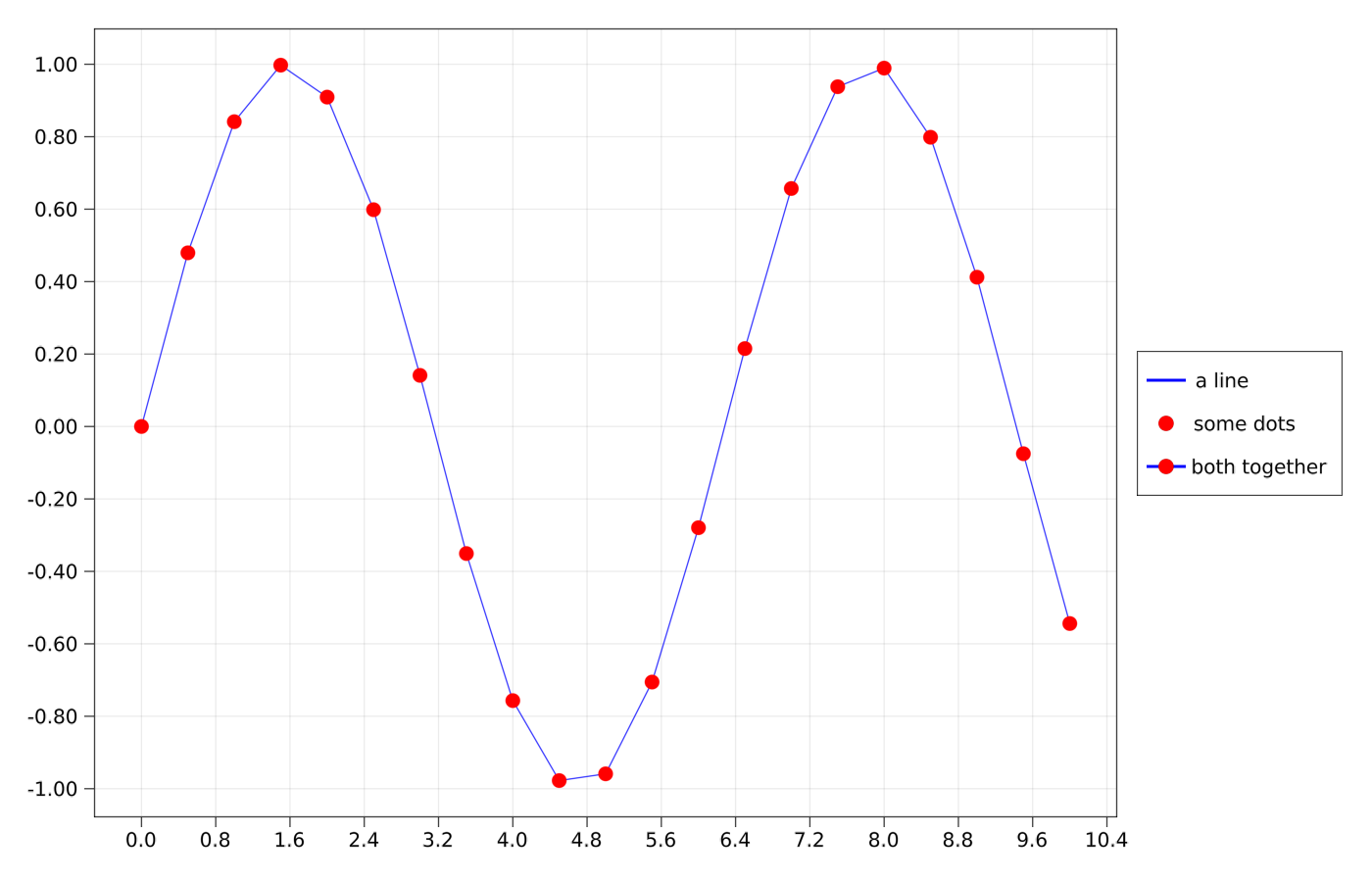

example legend

Multi-column legend

You can control the number of columns with the ncols attribute.

using MakieLayout
using Makie
using AbstractPlotting: px

scene, layout = layoutscene(resolution = (1400, 900))

ax = layout[1, 1] = LAxis(scene)

xs = 0:0.1:10
lins = [lines!(ax, xs, sin.(xs .+ 3v), color = RGBf0(v, 0, 1-v)) for v in 0:0.1:1]

leg = LLegend(scene, lins, string.(1:length(lins)), ncols = 3)
layout[1, 2] = leg

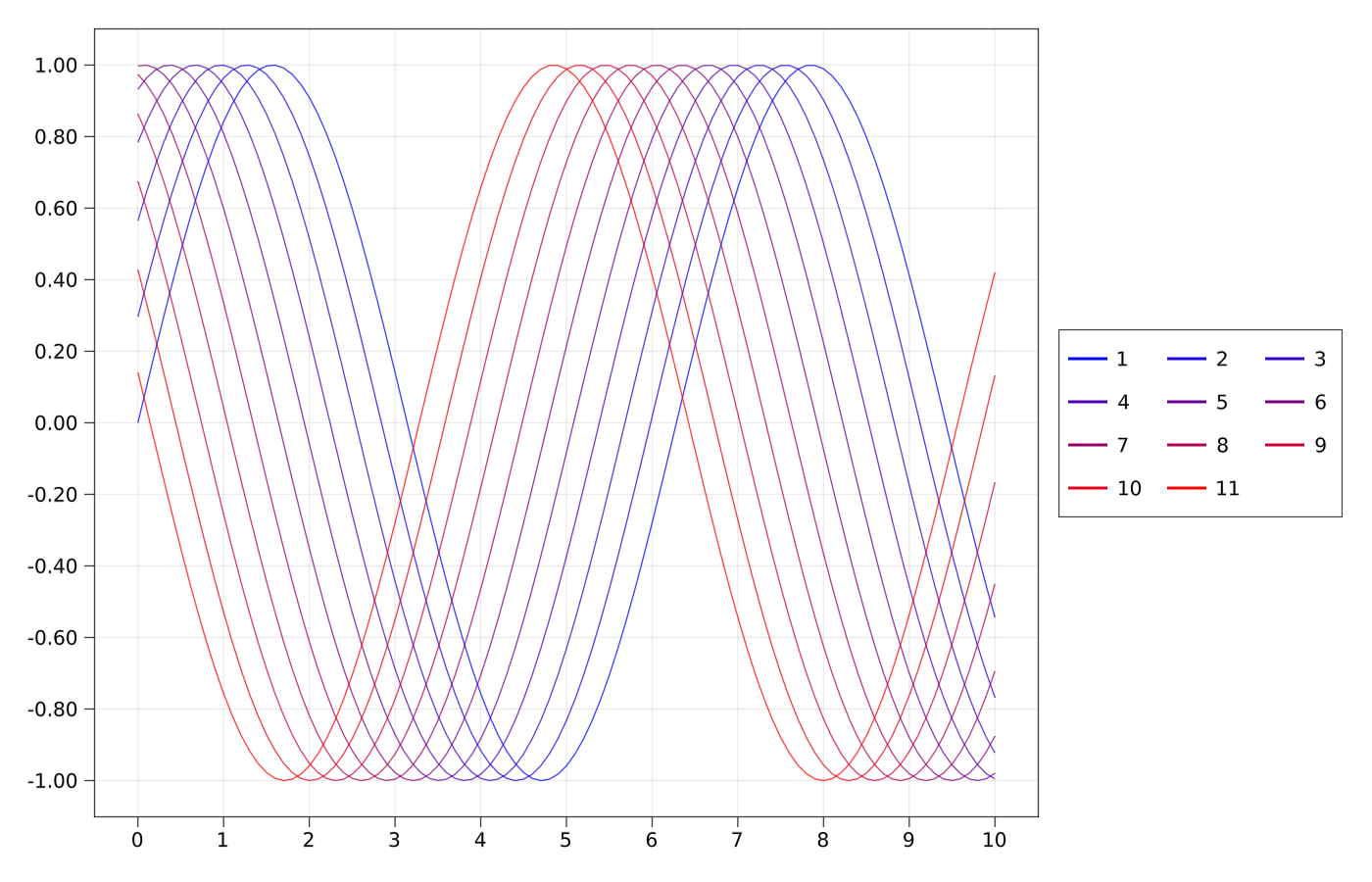

example legend ncols

Legend inside an axis

To place a legend inside an axis you can simply add it to the same layout slot that the axis lives in. As long as the axis is bigger than the legend you can set the legend's height and width to Auto(false) and position it using the align variables. You can use the margin keyword to keep the legend from touching the axis spines.

using MakieLayout
using Makie

scene, layout = layoutscene(resolution = (1400, 900))

ax = layout[1, 1] = LAxis(scene)

xs = 0:0.1:10
lins = [lines!(ax, xs, sin.(xs .* i), color = color)
    for (i, color) in zip(1:3, [:red, :blue, :green])]

legends = [LLegend(
        scene, lins, ["Line $i" for i in 1:3],
        width = Auto(false),
        margin = (10, 10, 10, 10),
    ) for j in 1:3]

haligns = [:left, :right, :center]
valigns = [:top, :bottom, :center]

for (leg, hal, val) in zip(legends, haligns, valigns)
    layout[1, 1] = leg
    leg.title = "$hal & $val"
    leg.halign = hal
    leg.valign = val
end

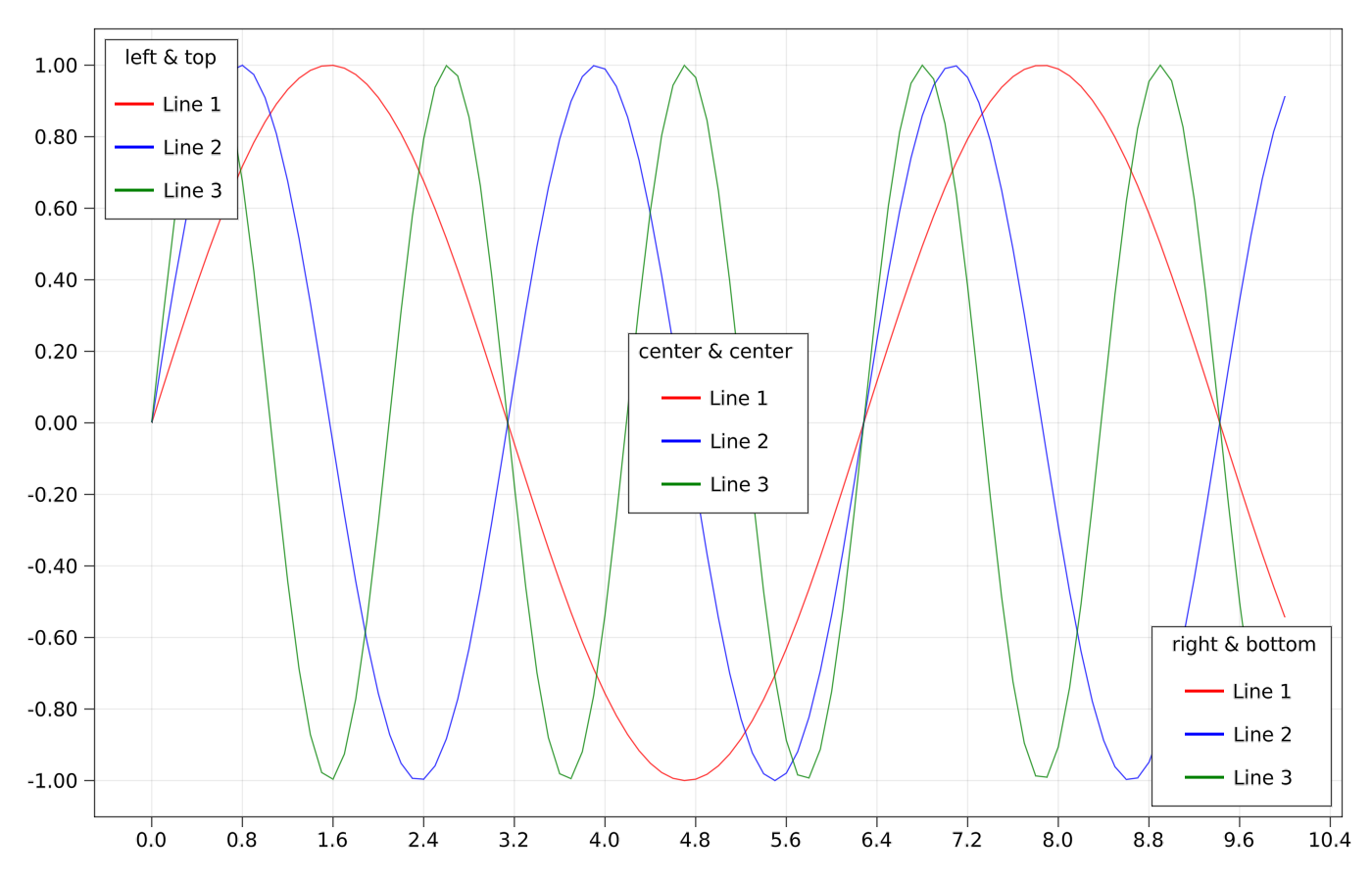

example legend alignment

Creating legend entries manually

Sometimes you might want to construct legend entries from scratch to have maximum control. So far you can use LineElements, MarkerElements or PolyElements. Some attributes that can't have a meaningful preset and would usually be inherited from plot objects (like color) have to be explicitly specified. Others are inherited from the legend if they are not specified. These include marker arrangement for MarkerElements or poly shape for PolyElements. You can check the list using this function:

using MakieLayout
MakieLayout.attributenames(LegendEntry)
(:label, :labelsize, :labelfont, :labelcolor, :labelhalign, :labelvalign, :patchsize, :patchstrokecolor, :patchstrokewidth, :patchcolor, :linepoints, :markerpoints, :markersize, :markerstrokewidth, :linewidth, :polypoints, :polystrokewidth)
using MakieLayout
using Makie
using AbstractPlotting: px

scene, layout = layoutscene(resolution = (1400, 900))

ax = layout[1, 1] = LAxis(scene)

leg = layout[1, 2] = LLegend(scene)

entry1 = LegendEntry(
    "Entry 1",
    LineElement(color = :red, linestyle = nothing),
    MarkerElement(color = :blue, marker = 'x', strokecolor = :black),
)

entry2 = LegendEntry(
    "Entry 2",
    PolyElement(color = :red, strokecolor = :blue),
    LineElement(color = :black, linestyle = :dash),
)

entry3 = LegendEntry(
    "Entry 3",
    LineElement(color = :green, linestyle = nothing,
        linepoints = Point2f0[(0, 0), (0, 1), (1, 0), (1, 1)])
)

entry4 = LegendEntry(
    "Entry 4",
    MarkerElement(color = :blue, marker = 'π',
        strokecolor = :transparent,
        markerpoints = Point2f0[(0.2, 0.2), (0.5, 0.8), (0.8, 0.2)])
)

entry5 = LegendEntry(
    "Entry 5",
    PolyElement(color = :green, strokecolor = :black,
        polypoints = Point2f0[(0, 0), (1, 0), (0, 1)])
)

push!(leg, entry1)
push!(leg, entry2)
push!(leg, entry3)
push!(leg, entry4)
push!(leg, entry5)

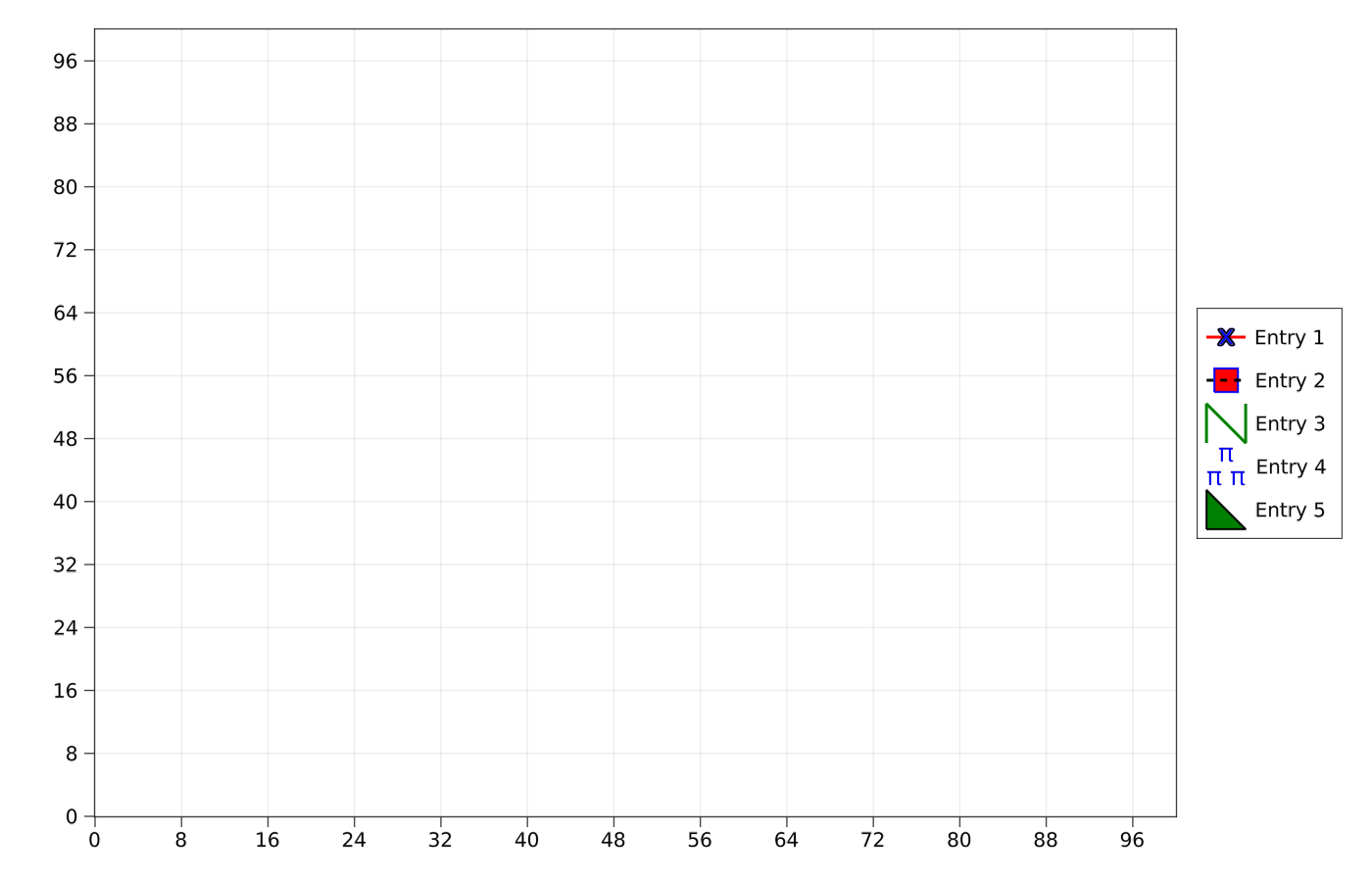

example legend entries

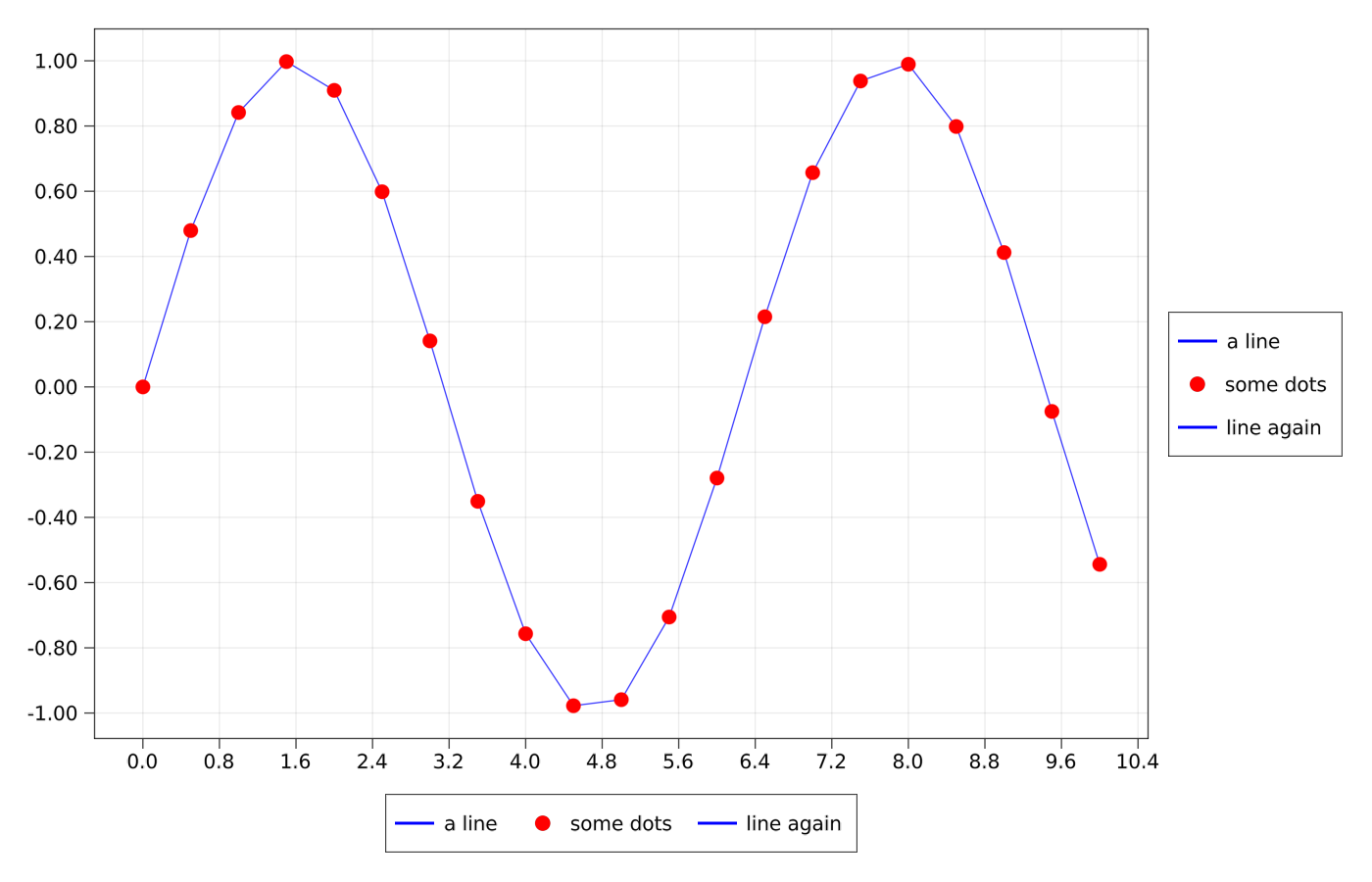

Horizontal legend

In case you want the legend entries to be listed horizontally, set the orientation attribute to :horizontal. In this case the ncols attribute refers to the number of rows instead. To keep an adjacent axis from potentially shrinking to the width of the horizontal legend, set width = Auto(false) and height = Auto(true) if you place the legend below or above the axis.

using MakieLayout
using Makie
using AbstractPlotting: px

scene, layout = layoutscene(resolution = (1400, 900))

ax = layout[1, 1] = LAxis(scene)

xs = 0:0.5:10
ys = sin.(xs)
lin = lines!(ax, xs, ys, color = :blue)
sca = scatter!(ax, xs, ys, color = :red, markersize = 15px)

leg = LLegend(scene, [lin, sca, lin], ["a line", "some dots", "line again"])
layout[1, 2] = leg

leg_horizontal = LLegend(scene, [lin, sca, lin], ["a line", "some dots", "line again"],
    orientation = :horizontal, width = Auto(false), height = Auto(true))
layout[2, 1] = leg_horizontal

example legend
